Eco-Worthy 10kW Complete Off-grid Solar Power Kit | 30.72kWh Battery Storage | 120V/240VAC Output | 40.32kWh Daily Generation

 Eco-Worthy 10kW Complete Off-grid Solar Power Kit

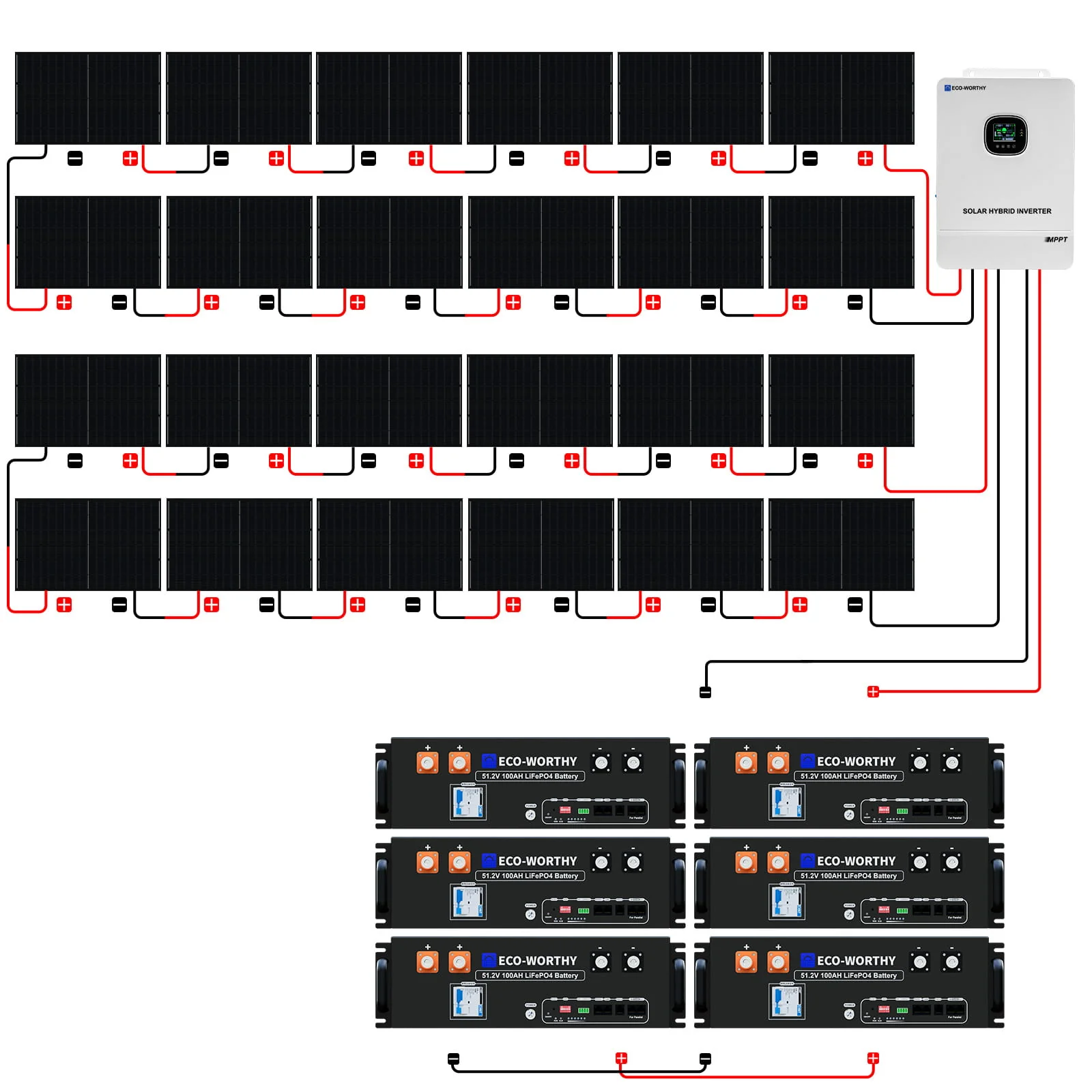

Package Includes:

10080W PV &20.48kWh Battery
24x 420W N-Type Mono Solar Panels
1x 10000W 48V Split Phase Off-grid All In One Inverter
2x 5M 12AWG Extension Cable with MC4
2x 5M 12AWG Solar Cables with MC4

1x 6-Layer Battery Rack
6x 48V(51.2V) 100Ah Server Rack LiFePO4 Lithium Batteries

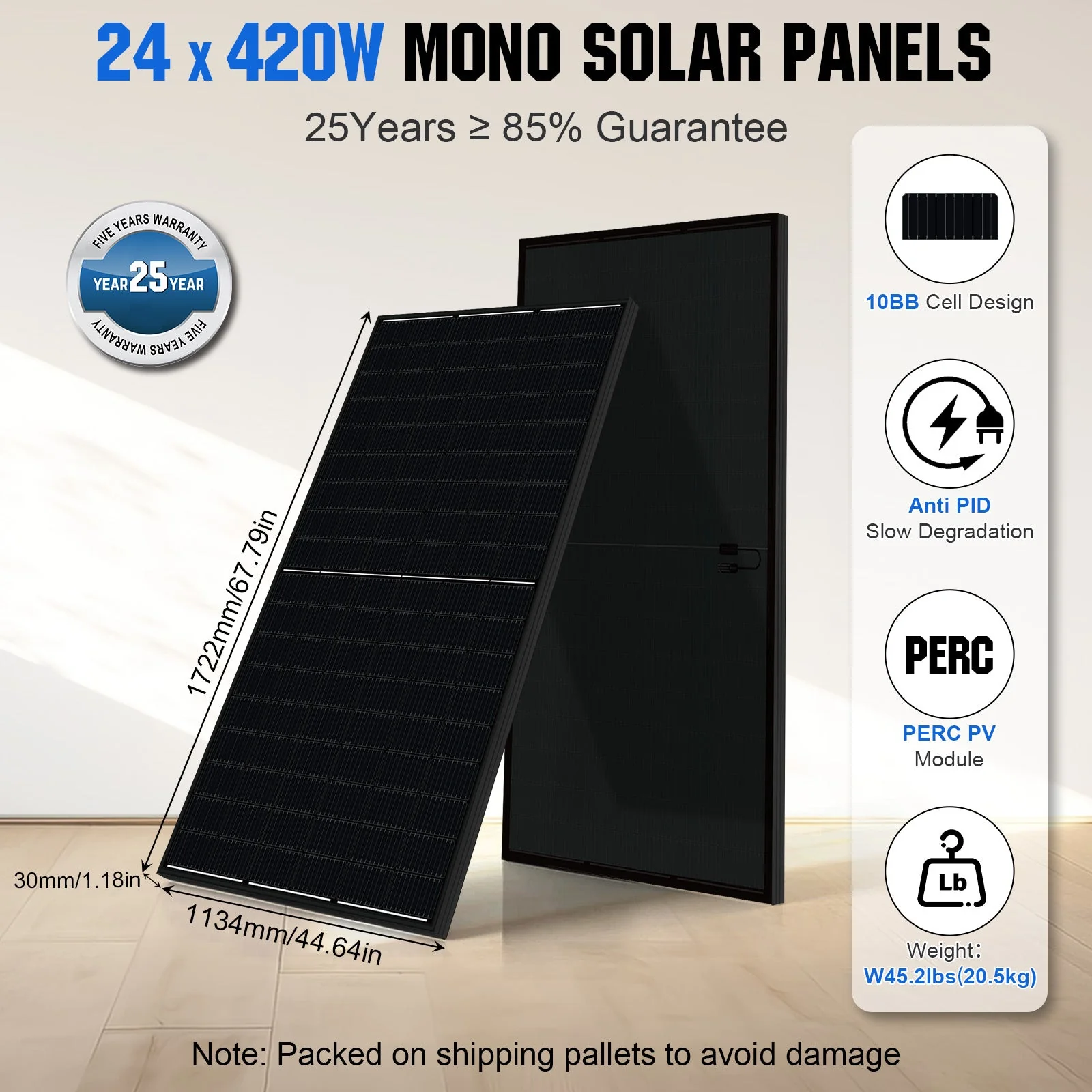

420W N-Type Monocrystalline Solar Panel

Rated Power: 420W	Solar Cell: Monocrystalline
Maximum/Peak Voltage(Vmp): 32.44V	Open Circuit Voltage(Voc): 38.73V
Short circuit current: 14.01A	Maximum current: 12.95A
Output Tolerance: ±3%	Temperate coefficient of Isc:0.05%/℃
Temperate coefficient of Voc: --0.29%/℃	Temperature range: －40℃～ +85℃
Frame: Aluminium alloy frame	Weight: 45.3 lbs(20.5 kg)
Size: 67.79x44.64x1.18in (1722*1134*30mm)

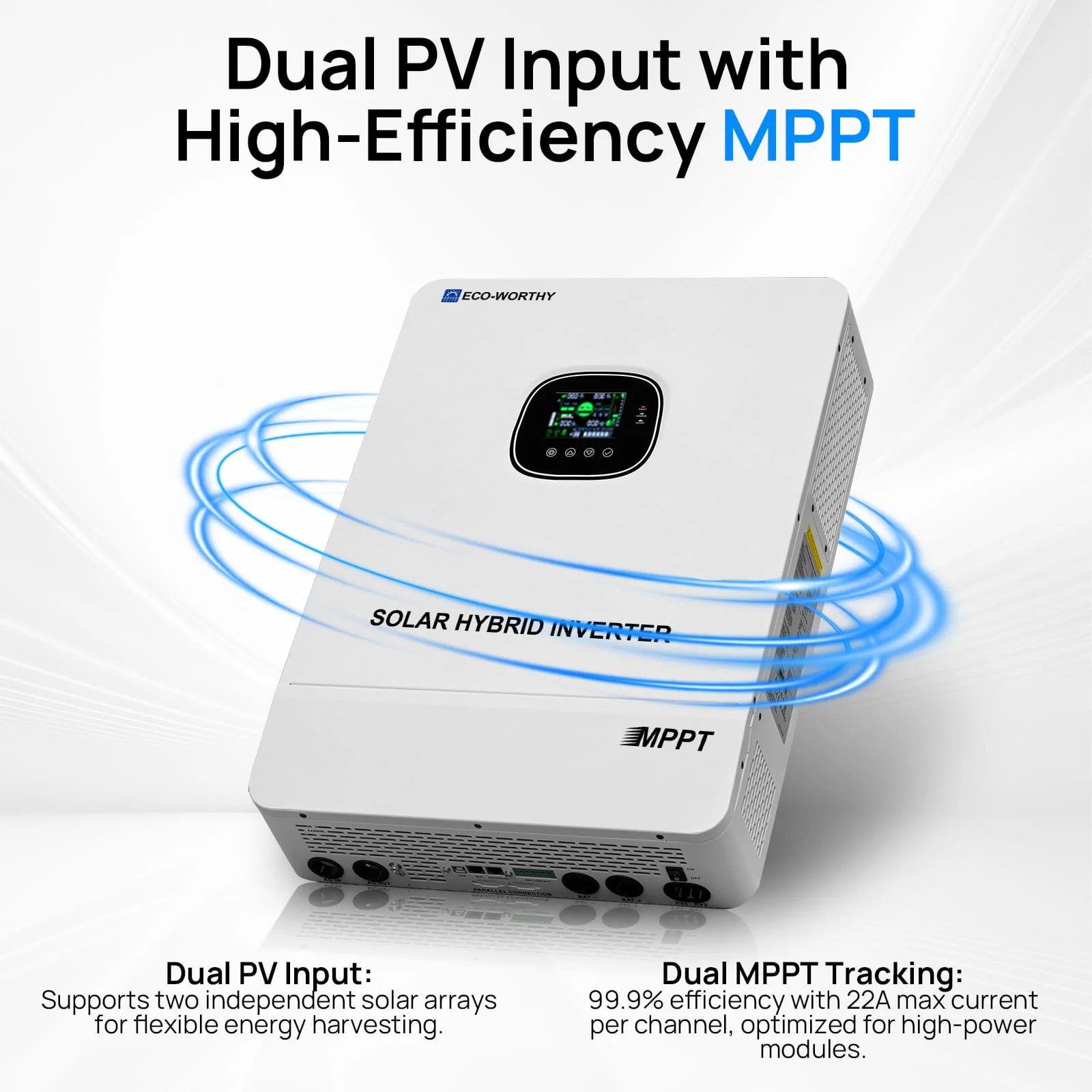

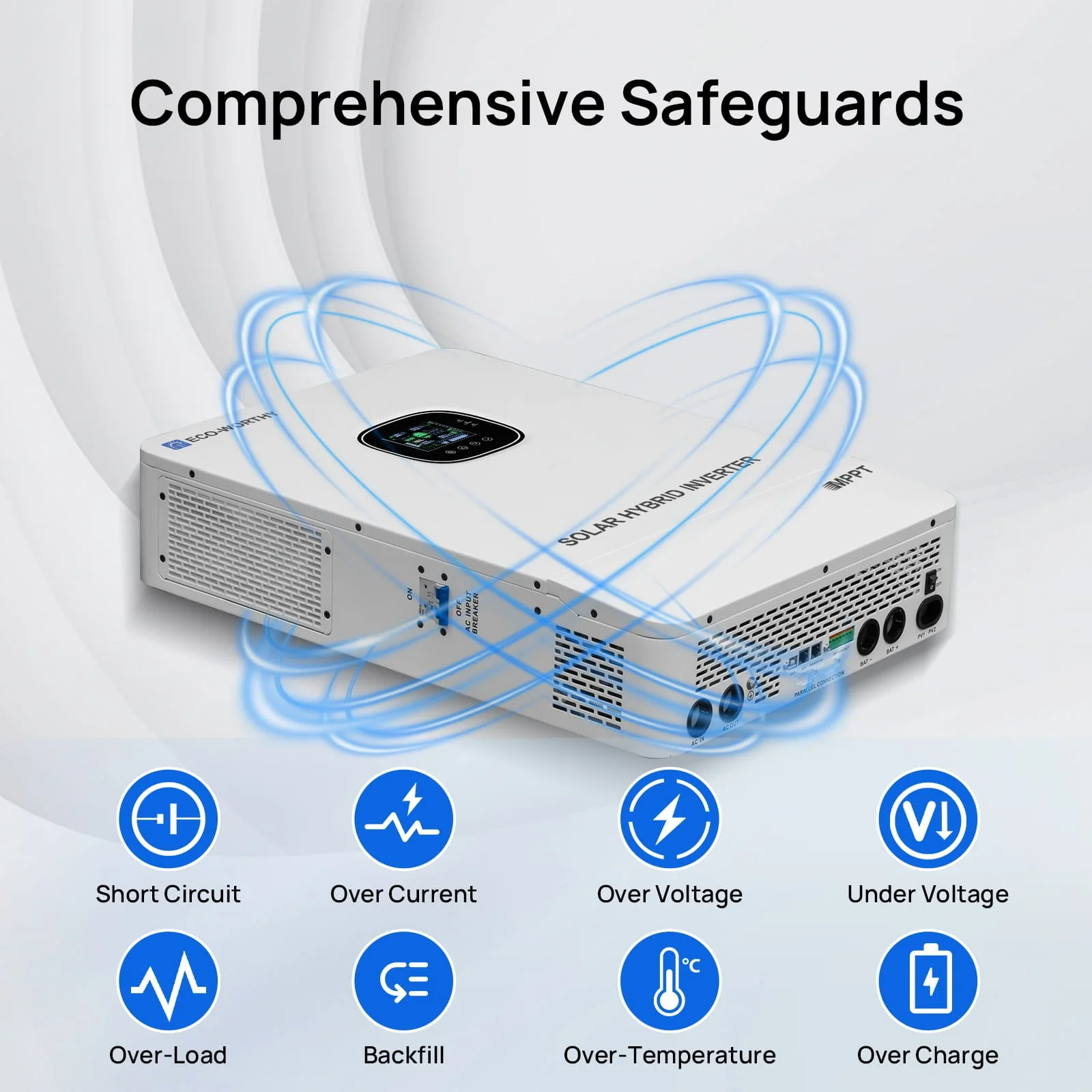

10kW Split Phase AIO Inverter

Solar Charging Mode
PV Charging Current Range: 0-200A	MPPT Voltage Range: 150-450VDC
Max Input Power: 15000W	Battery Voltage Range: 40-60VDC
Invert Mode
Output Waveform: Pure Sine Wave	Rated Output Power: 10000W
Rated Output: 120VAC/240VAC 50Hz/60Hz	Rated Battery Input Voltage: 48V
Peak Power: 20000W
AC/Grid Charging Mode
Rated Input: 90VAC-140VAC 50Hz/60Hz(auto detect)	Max Charging Discharging Currrent:200A

48V(51.2V) 100Ah Server Rack LiFePO4 Lithium Battery

Battery Capacity: 100Ah	Battery Power: 5120Wh
Rated Voltage: 51.2V	Voltage Range: 40~58V
Maximum Charge/ Discharge Current: 100A	Charge Temperature Range: 0-55℃
Discharge Temperature Range:﹣20－55℃	Maximum Charge Voltage: 58.4V
Screw size: M8	Battery Size: 56.1*48.3*14.3cm (22.09*19.02*5.63inch)
Battery Weight: 47kg(103 lbs)	Each battery comes with a pair of battery parallel cables

5M 12AWG  Solar Cable Wires with MC4

Cable Type: Connecting Solar Panels to Charge Controllers	Rating Voltage: 600/1000V
Length: 5 meters（16 ft）	Conductor: Tinned copper wire
AWG: 12	Normal Cross-Sectional Area of the Conductor (mm2): 4
Waterproof: IP 65 Protection	Temperature: -40°F to +185°F
Connector: MC4

5M 12AWG Solar Extension Cable Wires with MC4-MC4

Cable Type: Connecting Solar Panel to Solar Panel In Parallel	Rating Voltage: 600/1000V
Length: 5 meters（16 ft）	Conductor: Tinned copper wire
AWG: 12	Normal Cross Sectional Area of the Conductor (mm2): 4
Waterproof: IP 65 Protection	Temperature: -40°F to +185°F
Connector: MC4
