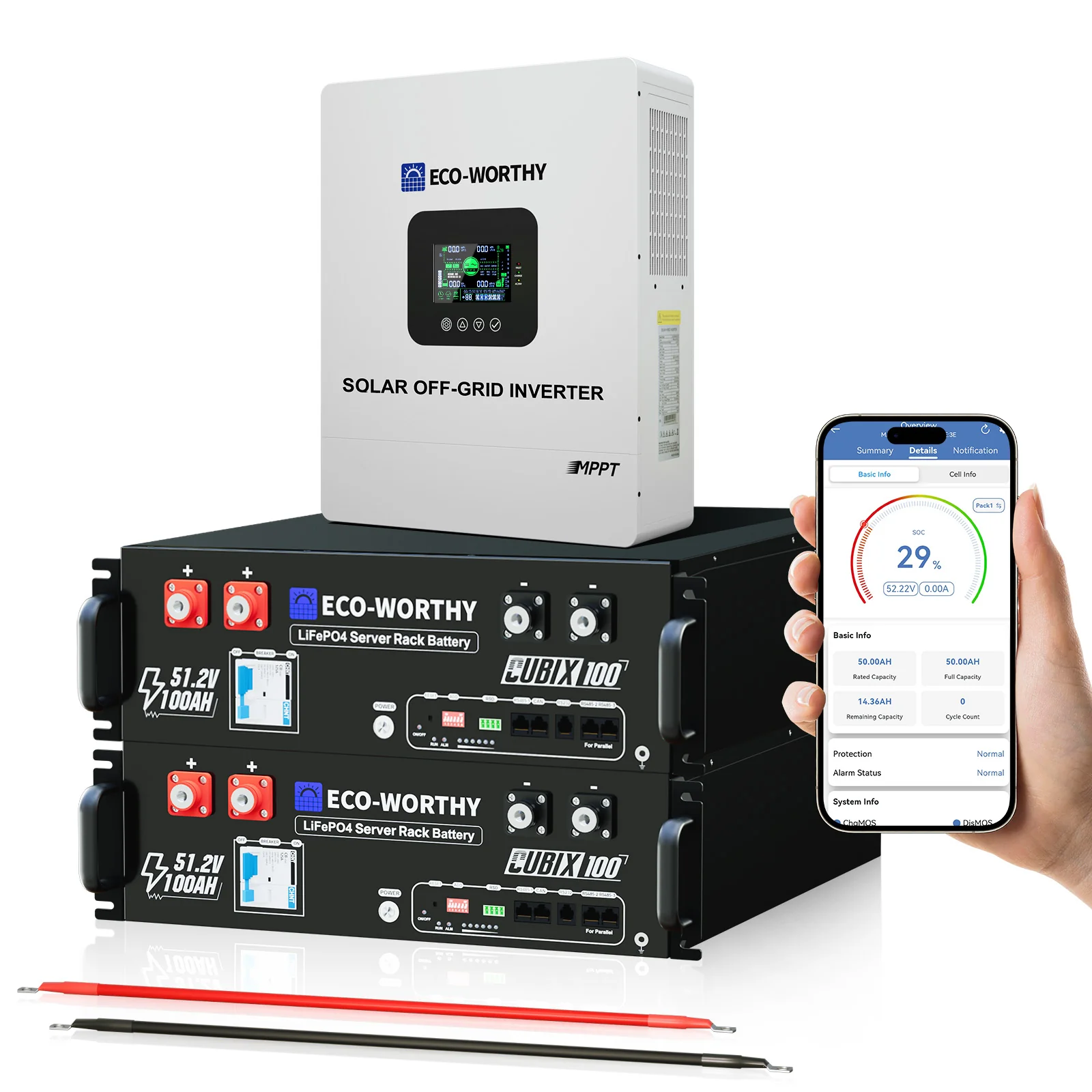

Eco-Worthy 5kW Home Backup Solar Power Bundle | 51.2V 100Ah LiFePO4 Battery and 5000W AIO Inverter
Package Includes:
48V 5000W All in One Inverter | 5.12kWh Lithium Battery
1 x 48V 100Ah Serve Rack Lithium Battery
1 x 48V 5000W All-in-One Inverter
1 Pair Battery-to-Inverter Connection Cable
1 Pair of Battery Parallel Cables
48V 5000W All in One Inverter |10.24kWh Lithium Battery
2 x 48V 100Ah Serve Rack Lithium Battery
1 x 48V 5000W All-in-One Inverter
1 Pair Battery-to-Inverter Connection Cable
2 Pairs of Battery Parallel Cables

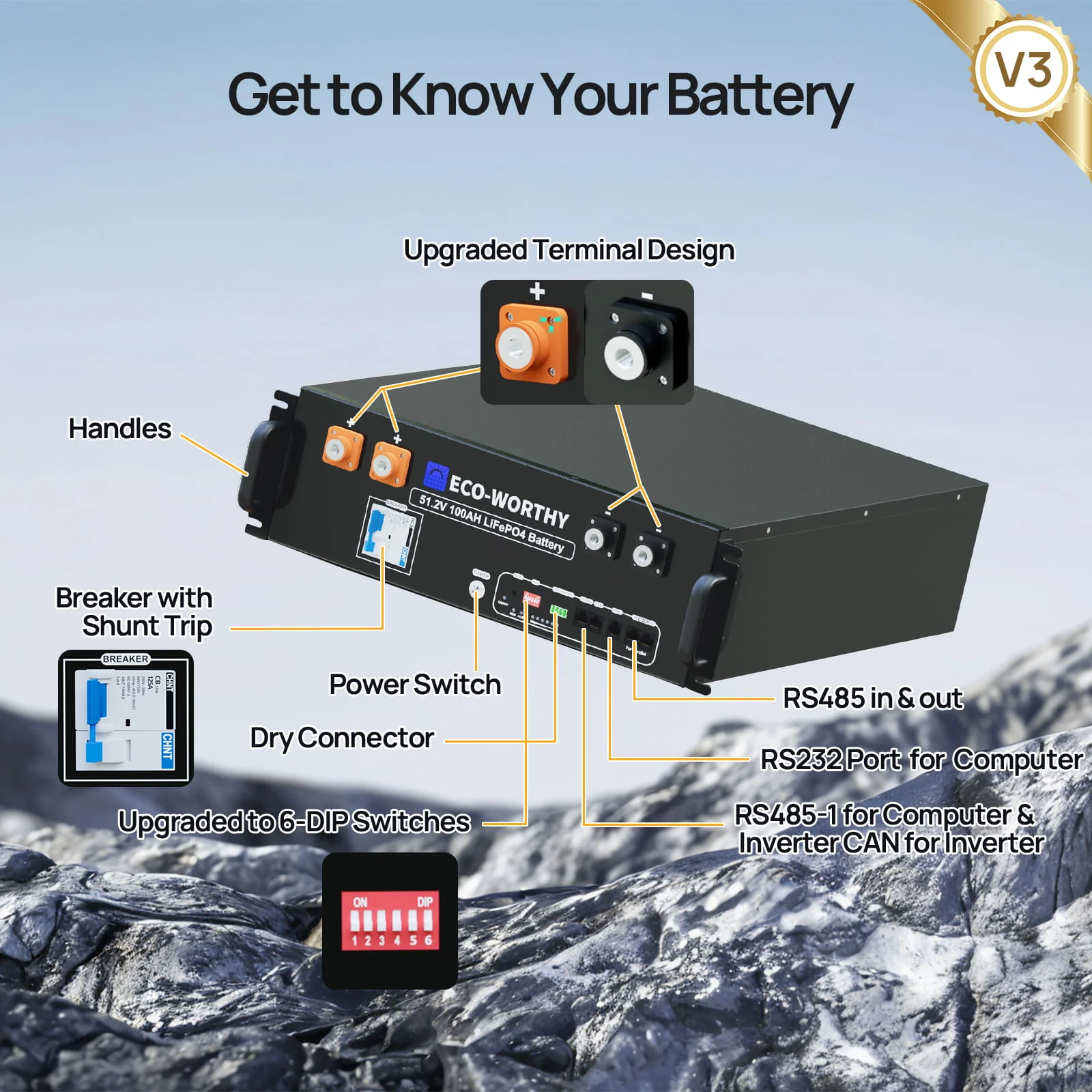

48V(51.2V) 100AH SERVE RACK LITHIUM BATTERY
| Battery Capacity: 100Ah | Battery Power: 5120Wh |
| Rated Voltage: 51.2V | Voltage Range: 40~58V |
| Maximum Charge/ Discharge Current: 100A | Charge Temperature Range: 0-55℃ |
| Discharge Temperature Range:﹣20－55℃ | Maximum Charge Voltage: 58.4V |
| Screw size: M8 | Battery Size: 56.1*48.3*14.3cm (22.09*19.02*5.63inch) |
| Battery Weight: 47kg(103 lbs) | Each battery comes with a pair of battery parallel cables |
48V 5000W Off-grid Inverter
| AC Input Mode | |
| Rated Input Voltage: 110/120VAC | Input Voltage Range: 90V-140VAC |
| Frequency: 50Hz/60Hz(auto detect) | Overload/Short Circuit Protection: Circuit breaker |
| Efficiency: >95% | AC Reverse Protection: Available |
| Max Bypass Overload Current: 40A | |
| Invert Mode | |
| Output Voltage Waveform: Pure Sine Wave | Rated Output Power: 5000W |
| Rated Output Voltage: 120VAC | Peak Power: 10000W |
| Bypass Breaker: 63A | Rated Battery Input Voltage: 48V |
| Min Starting Voltage: 44V | Power Saving Mode: Load ≤25W |
| AC Charging Mode | |
| Battery Type: Lead acid or lithium battery | Max Charge Current: 60A |
| Charge Voltage Range: 40-60VDC | Overcharge Protection: Alarm and turn off charging after 1 minute |
| PV Charging Mode | |
| Max Input Power: 5000W | PV Charging Current Range：0-80A(can be set) |
| Max PV Open Circuit Voltage: 500VDC | PV Operating Voltage Range: 120-450VDC |
| MPPT Voltage Range: 120-450VDC | Battery Voltage Range: 40-60VDC |
| Max Output Power: 5000W | Charging Short Circuit Protection: Blown fuse |

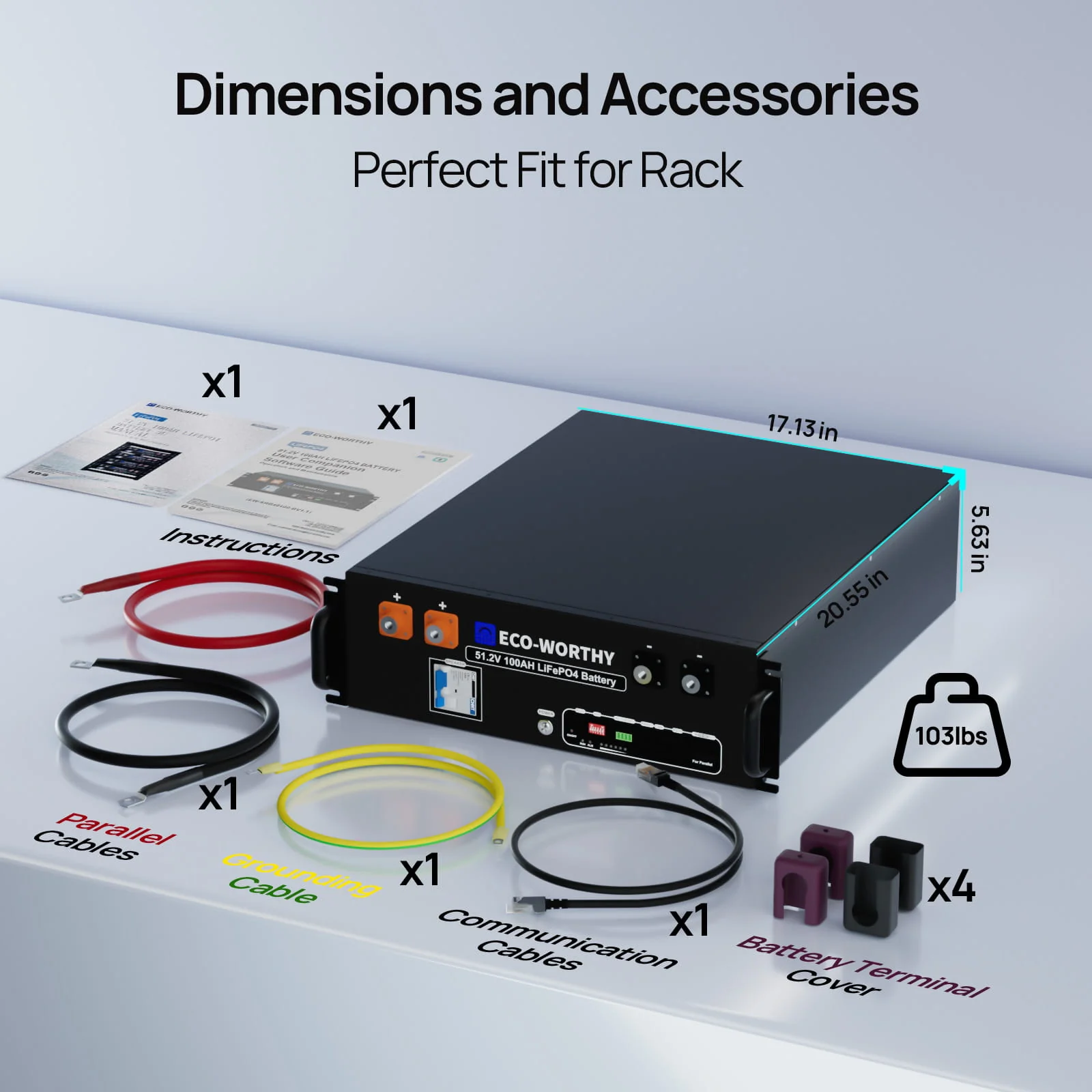

Package Includes:
Each battery comes with 1 pair of parallel cables/1 x Screws Bag & Terminal Cover/1 x Grounding wire/1 x Battery-Battery communication Cable. The other package contains a 5kW inverter, which also comes with its own wiring. Generally, there is no need to purchase additional cables.
Buy 2 battery packs, get a free battery monitor.
Original: $1,570.98
-65%$1,570.98
$549.84Product Information
