Eco-Worthy 3500W Solar Off-grid AIO Inverter | 48Vdc to 120Vac | 4400W@145V PV Input
| AC Input Mode | |
| Rated Input Voltage: 110/120VAC | Input Voltage Range: 90V-140VAC |
| Frequency: 50Hz/60Hz(auto detect) | Overload/Short Circuit Protection: Circuit breaker |
| Efficiency: 92% | AC Reverse Protection: Available |
| Max Bypass Overload Current: 40A | |
| Invert Mode | |
| Output Voltage Waveform: Pure Sine Wave | Rated Output Power: 3500W |
| Rated Output Voltage: 120VAC | Peak Power: 6000W |
| Bypass Breaker: 40A | Rated Battery Input Voltage: 48V |
| Min Starting Voltage: 44V | Power Saving Mode: Load ≤50W |
| AC Charging Mode | |

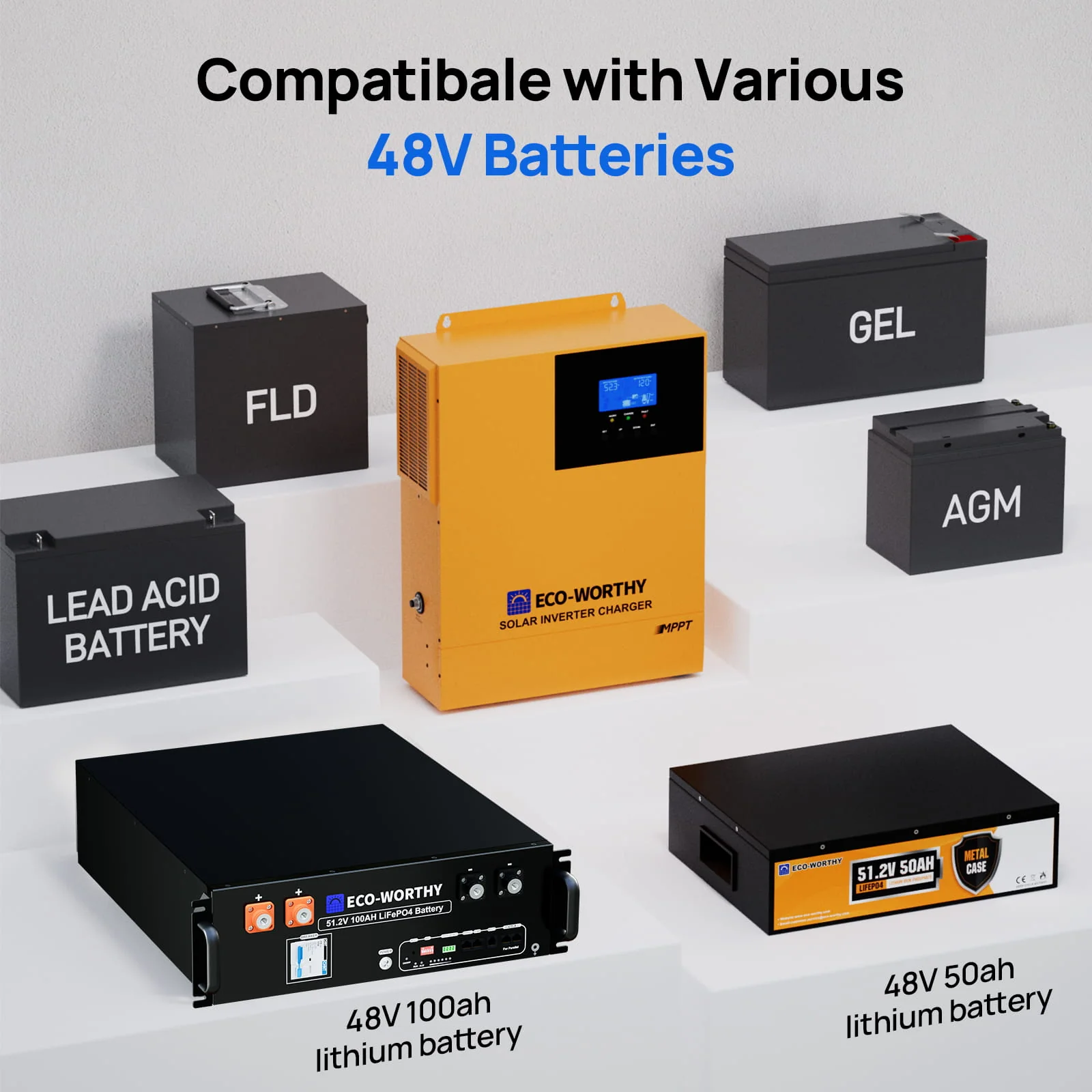

| Battery Type: Lead acid or lithium battery | Max Charge Current: 40A |
| Charge Voltage Range: 40-60VDC | Overcharge Protection: Alarm and turn off charging after 1 minute |
| PV Charging Mode | |
| Max Input Power: 4400W | PV Charging Current Range：0-80A(can be set) |
| Max PV Open Circuit Voltage: 145VDC | PV Operating Voltage Range: 60-145VDC |
| MPPT Voltage Range: 60-115VDC | Battery Voltage Range: 40-60VDC |
| Max Output Power: 4200W | Charging Short Circuit Protection: Blown fuse |
$203.64
Original: $581.84
-65%Eco-Worthy 3500W Solar Off-grid AIO Inverter | 48Vdc to 120Vac | 4400W@145V PV Input—
$581.84
$203.64Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| AC Input Mode | |
| Rated Input Voltage: 110/120VAC | Input Voltage Range: 90V-140VAC |
| Frequency: 50Hz/60Hz(auto detect) | Overload/Short Circuit Protection: Circuit breaker |
| Efficiency: 92% | AC Reverse Protection: Available |
| Max Bypass Overload Current: 40A | |
| Invert Mode | |
| Output Voltage Waveform: Pure Sine Wave | Rated Output Power: 3500W |
| Rated Output Voltage: 120VAC | Peak Power: 6000W |
| Bypass Breaker: 40A | Rated Battery Input Voltage: 48V |
| Min Starting Voltage: 44V | Power Saving Mode: Load ≤50W |
| AC Charging Mode | |
| Battery Type: Lead acid or lithium battery | Max Charge Current: 40A |
| Charge Voltage Range: 40-60VDC | Overcharge Protection: Alarm and turn off charging after 1 minute |
| PV Charging Mode | |
| Max Input Power: 4400W | PV Charging Current Range：0-80A(can be set) |
| Max PV Open Circuit Voltage: 145VDC | PV Operating Voltage Range: 60-145VDC |
| MPPT Voltage Range: 60-115VDC | Battery Voltage Range: 40-60VDC |
| Max Output Power: 4200W | Charging Short Circuit Protection: Blown fuse |
